EEG Module
EEG is the most important to learn brain function of patient.Witleaf's EEG OEM solution can provide:
> 4 Channel EEG waveform;
> TP,EMG,SQI,EEG,SEF95,MF,BSI;
> Delta,Theta,Alpha,Bata Frequency band ratio;
> Integrated tools and technical support;
> Certificated support and standard test report.
> TP,EMG,SQI,EEG,SEF95,MF,BSI;
> Delta,Theta,Alpha,Bata Frequency band ratio;
> Integrated tools and technical support;
> Certificated support and standard test report.
Table 1 EEG Module Select Table
Model
Electrical Characteristics
Measured parameter
Applicability people
Recommended applications
（M703）
DC12V
4 Channels EEG/TP/EMG/MF/BSI/SQI/b_Noise/aEEG
Adult/Pediatric/Neonate
EEG Monitoring
Model：
M703
Electrical Characteristics：
DC12V
Measured parameter：
4 Channels EEG/TP/EMG/MF/BSI/SQI/b_Noise/aEEG
Applicability people：
Adult/Pediatric/Neonate
Recommended applications：
EEG Monitoring

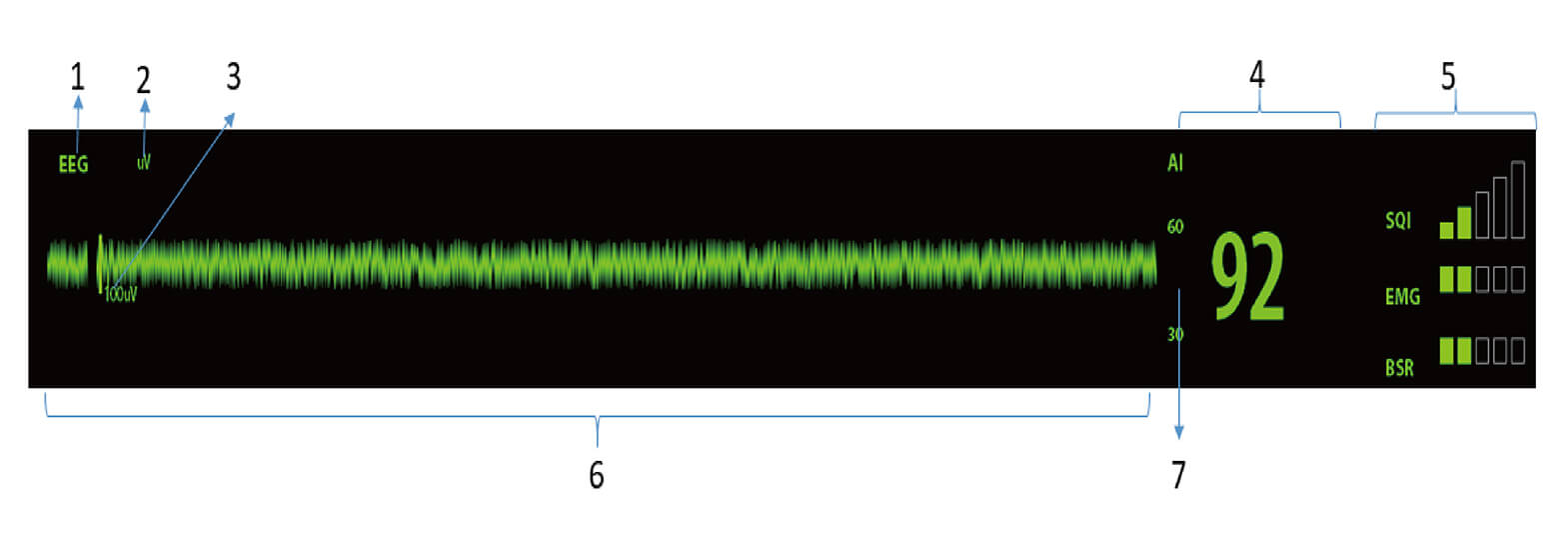

Multi-functional parameter calculation
EEG monitoring technology supports the calculation of parameters including the power ratio of α,β,γ and δ waves from the EEG power spectrum, as well as frequency domain parameters such as β-ratio, SEF (limbic spectrum), EMG power, and TP total power spectrum.
The inhibition level index BSI was calculated by evaluating the EEG signal in the time domain.

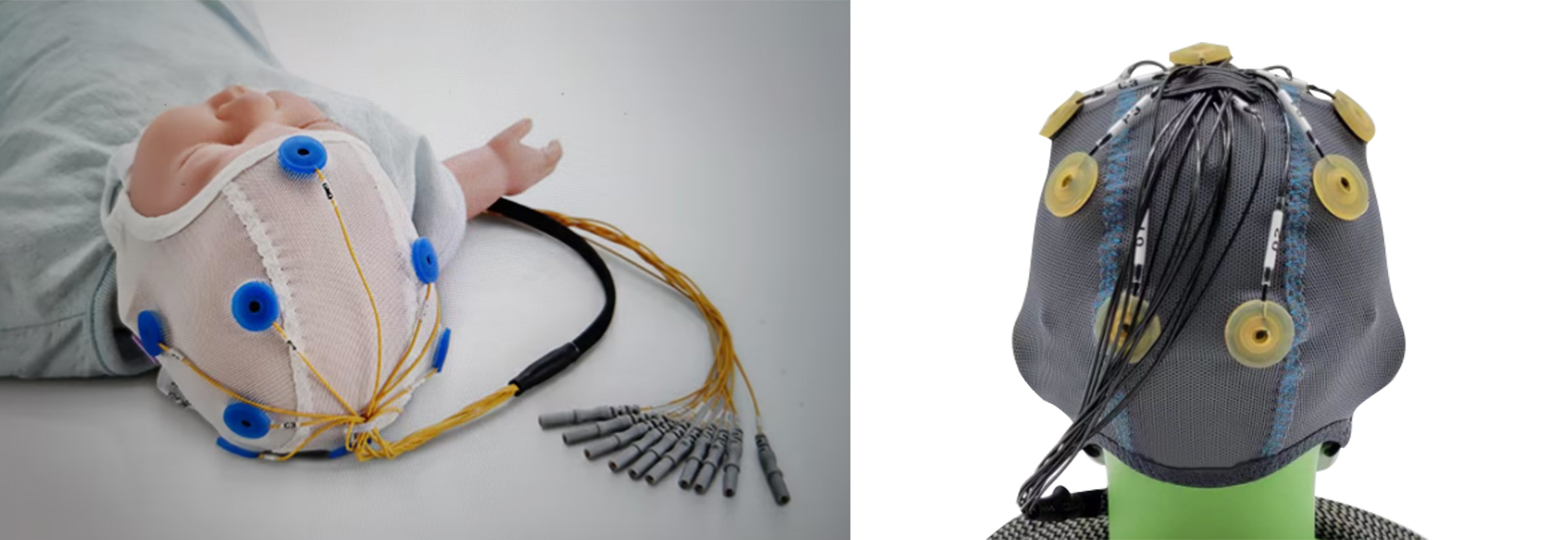

Complete sensor support
EEG measurement technology supports a variety of sensor matching system measurements.
with forehead electrodes, head-mounted electrodes, cap electrodes, to meet different applications.
