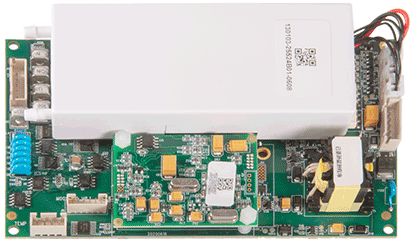

Technical Specifications
SPECIFICATIONS
VALUES
Parameters
5-Leads ECG，NIBP，SPO2，TEMP，RESP，PR，HR，R Peak Output
Physical Dimensions
140mmx85mmx25mm
Voltage
DC 12V±5%
Power Consumption
≤6W
Communication Protocol
USART，TTL
Operating Conditions
Temperature：0°C~70°C，Humidity：< 40 hPa H2O (non-condensing) (95% RH at 30 °C)
Storage Conditions
Temperature：-40°C~70°C，Humidity：< 40 hPa H2O (non-condensing) (95% RH at 30 °C)
Advantage Technologies
Fast QRS wave Detection, Delay ≤ 20ms
Accurate R Peak Detection for Synchronization EECP System
Comply with the standard requirements for ECG and pulse oximetry in IEC xxxxxx "Air-bag type sequential external counter-pulsation device"
Hardware R Peak output，delay ≤ 5ms
Fast ECG waveform Recover，delay ≤ 3s
ECG Anti-drift Algorithm
OEM Customized Solutions
