M605 ICG

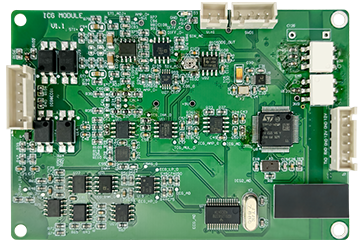

The ICG module captures ICG and ECG signals simultaneously to accurately measure key parameters such as HR, SV, CO, SI, CI, and ICON. With advanced anti-baseline drift technology, it ensures stable performance during patient movement or breathing changes, enabling reliable, real-time assessment of cardiac pumping function and circulatory status. This non-invasive solution is ideal for continuous hemodynamic monitoring in ICU, cardiology, and perioperative care. The module seamlessly integrates with multiparameter monitoring systems, providing a safe, convenient, and precise solution for clinical hemodynamic management.
Technical Specifications
SPECIFICATIONS
VALUES
Parameters
Heart rate ( HR ), stroke volume ( SV ), cardiac output ( CO ), stroke index ( SI ), cardiac index ( CI ) and cardiac index of contraction ( ICON ).
Physical Dimensions
100mmx67mmx25mm
Voltage
DC 12V±5%
Power Consumption
≤3W (typical, at input voltage 12V±5%)
Communication Protocol
5V TTL-level UART interface
Operating Conditions
0°C to 70°C (32°F to 158°F),5%-95% non-condensing humidity
Storage Conditions
-40°C to 70°C (-40°F to +158°F),5%-95% non-condensing humidity
Advantage Technologies
Independently developed, high-precision impedance cardiography (ICG) signal acquisition and processing technology
Advanced high-accuracy ICG fiducial point detection technology
Robust baseline motion drift suppression technology
