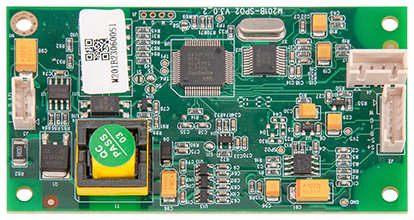

M201B
The M201B integrates core technologies LowPulseStr™ and SpO₂, ensuring accurate measurements even under low perfusion conditions, and features built-in power and communication isolation design. This module delivers a safer and more reliable oximetry monitoring solution for clinical use, and can be directly integrated into multiparameter monitors, dedicated neonatal/pediatric devices, and telemedicine systems—eliminating the need for additional isolation circuitry. Designed to meet vital sign monitoring needs for adults, children, and neonates, the M201B is an ideal choice for critical care, perioperative management, and home healthcare applications.
Technical Specifications
SPECIFICATIONS
VALUES
Parameters
SPO2,PR,PI,PIV,TEMP(Optional)
Physical Dimensions
89mm×51mm×10mm
Voltage
DC 12V±5%
Power Consumption
≤1.5W (typical, at input voltage 12V±5%)
Communication Protocol
5V TTL-level UART interface
Operating Conditions
0°C to 70°C (32°F to 158°F),5%-95% non-condensing humidity
Storage Conditions
-40°C to 70°C (-40°F to +158°F),5%-95% non-condensing humidity
Advantage Technologies
Advanced SpO₂ Monitoring, Even in Low-Perfusion Conditions
Dual-Domain SpO₂: Fuses time and frequency domains to suppress motion artifacts
OEM Customized Solutions
