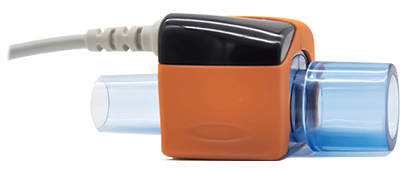

CapnoSET
CapnoSET integrates wSmartGas® and low-temperature rapid measurement technology, delivering full-accuracy EtCO₂ readings instantly at power-on and stable performance from 0°C to 50°C. Its rugged design offers excellent drop and impact resistance, ideal for emergency transport, rescue, and critical care.Suitable for OR, ICU, NICU, and emergency settings, CapnoSET is widely used in Class II and III medical devices. It supports both reusable and single-use consumables for adult, pediatric, and neonatal monitoring.
Technical Specifications
SPECIFICATIONS
VALUES
Parameters
EtCO2、FICO2、Realtime Capnography
Physical Dimensions
40mm×36mm×32mm
Voltage
DC 5V±5%
Power Consumption
≤0.7W (typical value, input voltage 5V±5%.) Maximum instantaneous power consumption: 2.5W
Communication Protocol
RS232
Operating Conditions
0°C to 50°C (32°F to 122°F),15%-90% non-condensing humidity
Storage Conditions
-20°C to 70°C (-4°F to +158°F),15%-95% non-condensing humidity
Advantage Technologies
Plug-and-play design with wide operating temperature range
Shock and drop-resistant construction, IPX4 protection rating
Supports WITLEAF communication protocol and optional compatible protocols
Dedicated consumables designed to meet ISO 18562-1/-2/-3/-4 biocompatibility requirements
Complies with IEC 60601-1-2:2014/AMD1:2020 for EMC, with radiated immunity meeting Class B requirements
