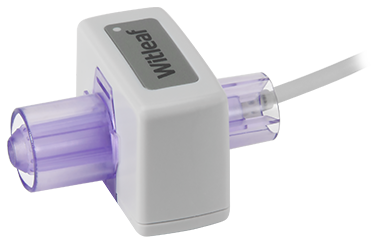

M401D
M401D integrates core technologies including wSmartGas® and low-temperature rapid measurement, delivering full-accuracy EtCO₂ readings instantly at startup and reliable performance across temperatures from 0°C to 50°C. The consumables are designed with an ultra-low dead volume space, enabling the module's application in scenarios with stringent dead volume requirements. Suitable for in-hospital and out-of-hospital emergency transport, ICU, and critical care, the module is widely used in Class II and III medical devices. It supports both reusable and single-use consumables, enabling accurate EtCO₂ monitoring for adults, children, and neonates in OR, ICU, NICU, and emergency/trauma settings.
Technical Specifications
SPECIFICATIONS
VALUES
Parameters
EtCO2、FICO2、Realtime Capnography
Physical Dimensions
40mm×32mm×21mm
Voltage
DC 5V±5%
Power Consumption
≤0.7W (typical value, input voltage 5V±5%.) Maximum instantaneous power consumption: 2.5W
Communication Protocol
Rs232 level, UART interface
Operating Conditions
0°C to 50°C (32°F to 122°F),15%-90% non-condensing humidity
Storage Conditions
-20°C to 70°C (-4°F to +158°F),15%-95% non-condensing humidity
Advantage Technologies
Plug-and-Play Operation with Wide Temperature Range
Shockproof & Drop-Resistant Design (IPX4 Rated)
Dual Protocol Support with WITLEAF and Optional Compatibility
Compatible with Respironics consumables design, and compliant with ISO 18562-1/-2/-3//-4 for biocompatibility requirements
EMC Certified: IEC 60601-1-2:2014/AMD1:2020 (Radiated Immunity Class B)
OEM Customized Solutions
