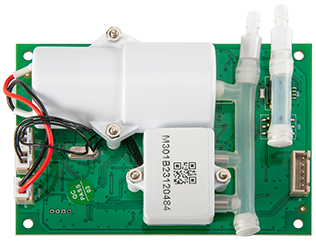

M301
The M301 integrates iFastBP® and NIBP core technologies. Featuring fast inflation technology, it significantly reduces measurement time and enhances patient comfort—making it ideal for emergency and critical care settings where frequent monitoring is required. Its excellent motion-artifact resistance ensures accurate readings even during patient movement, supporting both ambulatory blood pressure monitoring and home care applications. The modular design allows easy integration into various monitoring systems and mobile medical devices, delivering a reliable blood pressure monitoring solution for clinical and home healthcare environments.
Technical Specifications
SPECIFICATIONS
VALUES
Parameters
SYS MAP DIA PR
Physical Dimensions
105mm×72mm×31mm
Voltage
DC 12V±5%
Power Consumption
≤5W (typical, at input voltage 12V±5%)
Communication Protocol
5V TTL-level UART interface
Operating Conditions
0°C to 70°C (32°F to 158°F),5%-95% non-condensing humidity
Storage Conditions
-40°C to 70°C (-40°F to +158°F),5%-95% non-condensing humidity
Advantage Technologies
Motion-Resistant NIBP Technology: multi-feature matching and frequency-domain interference rejection
Multi-Mode NIBP Measurement: Step deflation (AAMI-standard) and Inflation-Phase Monitoring
Fast NIBP measurement: ≤25 seconds for normal subjects
Dual overvoltage protection for fail-safe operation
Self-established NIBP database covering hypertensive, elderly, neonatal and pregnant populations
OEM Customized Solutions
