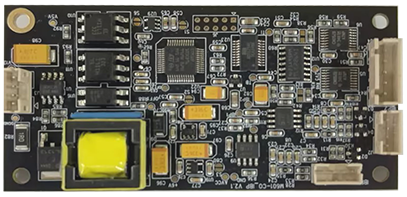

M601V
The M601V Module supports invasive blood pressure (IBP), invasive cardiac output (ICO), and hemodynamic parameter calculations. Using invasive techniques, it provides key hemodynamic data for assessing circulatory function in animals. Especially valuable during cardiac surgery and critical care, it helps veterinary teams monitor cardiovascular status and support clinical decisions with reliable, real-time insights.
Technical Specifications
SPECIFICATIONS
VALUES
Parameters
IBP,PR,Tb,Ti,C.O.
Physical Dimensions
87mm*45mm*14mm
Voltage
DC 12V±10%
Power Consumption
Peak Power: ≤5 W, Rated Power: ≤2 W
Communication Protocol
5V TTL-level UART interface
Operating Conditions
0°C to 70°C (32°F to 158°F),15%-95% non-condensing humidity
Storage Conditions
-40°C to 70°C (-40°F to +158°F),15%-95% non-condensing humidity
Advantage Technologies
Veterinary-Specific Algorithm
Invasive cardiac output monitoring is the clinical gold standard, providing accurate and reliable hemodynamic assessment
Continuous, real-time hemodynamic monitoring enables dynamic evaluation of cardiovascular function
Parameters such as PPV, SPV, and SVV help optimize fluid management and stabilize the patient's circulatory state
OEM Customized Solutions
